Haiwell H04DT PLC controller expansion for DS18B20 temperature control

FOB Reference Price:Get Latest Price
US $94-176 / Pieces | 1 Piece/Pieces temperature control (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Haiwell
Model Number:
H04DT
PLC I/O points:
4 channels
AI type:
DS18B20 and SHT11
Power Supply:
24V DC
Conversion Accuracy:
9~12bit
Programming Language:
LD, FBD, IL
Haiwell Series:
Temperature module
Remote I/O module:
None
Communication:
Parallel interface
PLC Dimension:
30*95*82mm
Protocol:
Modbus
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month temperature control
Packaging & Delivery
Packaging Details
Standard Haiwell PLC new original packing, cartons packed
Port
Xiamen
Lead Time :
Shipped in 1 days after payment

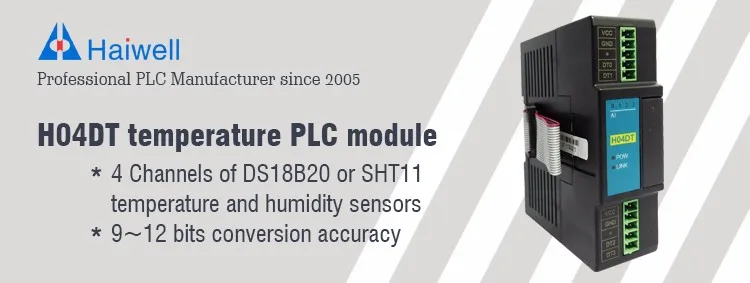

Haiwell H04DT PLC controller expansion for DS18B20 temperature control


Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.



It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.

Very easy to study and use!  It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.





PLC Model Spec.


PLC Model

Power

AI

Conversion Accuracy

Communication

Haiwell series

H04DT

24V DC

4 channels of DS18B20 of SHT11

9~12bit

Parallel interface

Temperature module



Haiwell PLC Analog Input (AI) Specification

Item

Voltage Input

Current Input

RTD Input

Thermocouple Input

Input range

-10V~+10V

0V~+10V

0V~+5V

1V~+5V

0~20mA

4~20mA

Pt100, Pt1000, Cu50, Cu100

S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0-20]mV, [0-50]mV, [0-100]mV

Resolution

5mV

2.5mV

1.25mV

1.25mV

5uA

5uA

0.1℃

0.1℃

Input impedance

6MΩ

250Ω

6MΩ

6MΩ

Max input range

±13V

±30mA



±5V

Input indication

LED light means normal , dark means break OFF

Response time

5ms/4 Channel

560ms/4 Channel ,880ms/8 Channel

Digital input range

12 bits, Code range: 0~32000(H series module 16 bits A/D convert)

16 bits, Code range: 0~32000

Precision

0.2% F.S

0.1% F.S

Power supply

MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA

Isolation mode

Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation

Power consumption

24VDC ±20%,100mA(Max)

24VDC ±20%,50mA(Max)



Programming Software

  HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users.  All neccessary instructions are highly intergrated,  Very easy to study and use.



It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.



Runing with Windows 98, Windows 2000, Windows XP and  newer versions.

Totally free PLC software with all features.




PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.

Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.

Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.

Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.



At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.



The products are of our own manufacture. We have advanced  production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.
