Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Haiwell
  • Model Number: H24XDT2-e
  • PLC digital PLC I/O points: 12*DI/12*DO transistor
  • PLC digital Power Supply: 220V AC
  • PLC digital Isolation mode: optical
  • PLC digital Programming Language: LD, FBD, IL
  • PLC digital Haiwell Series: Digital module
  • PLC digital Remote I/O functions: Supported
  • PLC digital Communication: Built-in 1*Ethernet port+ 1*RS485
  • PLC digital PLC Dimension: 93*95*82mm
  • PLC digital Protocol: Modbus RTU/ASCII&TCP procotol, Haiwellbus TCP& high speed protocol

Packaging & Delivery

Packaging Details Standard Haiwell PLC new original packing, cartons packed
Delivery Time Shipped in 1 days after payment

New design Haiwell H24XDT2-e PLC digital input module with Ethernet port for PID control



Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.



It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.

Very easy to study and use!  It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.



Haiwell PLC Ethernet + : Host PLC and remote modules support Ethernet communication, host PLC support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support N:N network

type, support remote programming, debug, monitoring and data exchange. Easy to network with other PLC modules,HMI and PC via Ethernet port.





PLC Model Spec.



PLC Model

Power

DI

DO

Communication

Haiwell series

H24XDT2-e

220V AC

12

12 transistor

1*Ethernet port+ 1*RS485, supports remote IO functions

Digital IO module



Haiwell PLC Digital Input (DI) Specification

Item

Digital Input DI

Input signal

Non-voltage contact or NPN/PNP contact

Action driving

ON: 3.5 mA above OFF: below 1.5 mA

Input impedance

About 4.3KΩ

Input maximum current

10mA

Response time

Default 6.4ms,Configurable 0.8~51.2ms

Isolation mode

Each Channel optical isolation

Input indication

LED light means ON, dark means OFF

Power supply

PLC internal power supply: DC power(sink or source)5.3mA@24VDC





Haiwell PLC Digital Output (DO) Specification



Item

 Relay Output-R

Transistor Output NPN-T

maximum load

Resistance load

2A/1 point,8A/4 point per COM

0.5A/1 point,2A/4 point per COM

Inductive load

50VA

5W/DC24V

Light load

100W

12W/DC24V

Min. load

10mA

2mA

Voltage specification

Below 250VAC,30VDC

30VDC

Drive capability

Maximum 5A/250VAC

MAX 1A 10S

Response time

Off-on 10ms,On-off 5ms

Off→On 10us, On→Off 120us

Leakage current when route opened

---

Below 0.1mA

Isolation mode

Mechanical isolation

Each Channel optical isolation

Output indication

LED light means ON , dark means OFF

Power supply

PLC internal power supply 24VDC

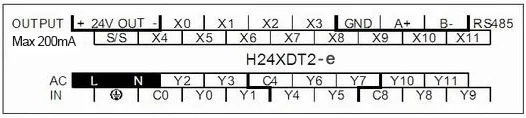

Haiwell H24XDT2-e PLC digital input module terminal wiring diagram



Programming Software

  HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users.  All neccessary instructions are highly intergrated,  Very easy to study and use.



It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.



Runing with Windows 98, Windows 2000, Windows XP and  newer versions.

Totally free PLC software with all features.





PLC advantages

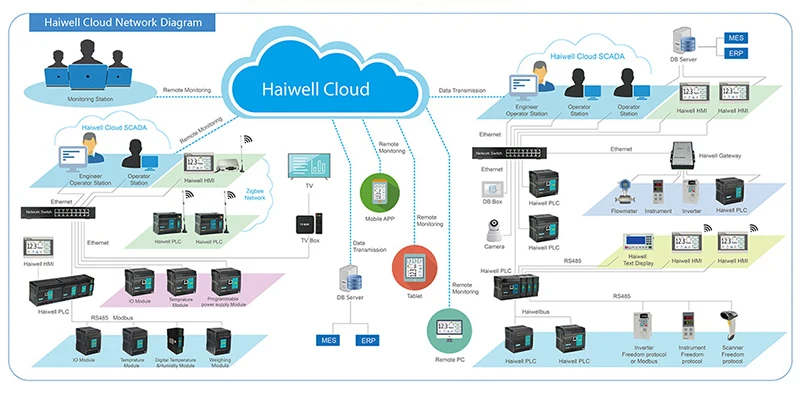

As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.

Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.

Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.


Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.



At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.



The products are of our own manufacture. We have advanced  production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.

Every year our company have different and high-quality exhibitions and training meetings which attract different customers to join us.





Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.



Shipment

1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
3,Shipping method is negotiable,customer can designate freight forwarders.
