Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Haiwell
  • Model Number: TP300
  • Series: Text Display
  • Function keys: 19, can be freely defined(Containing 10 number input buttons)
  • Resolution: 192*64 Pixel
  • Memory: 64KB Flash ROM
  • COM Port: PC RS232 & PLC RS485 & PLC RS232
  • Dimension: 172*95*30mm
  • Shell: color Gray
  • Power supply: 21~28 VDC
  • Backlight: Long-life bright white LED
  • CPU: 8-bit MCU

Packaging & Delivery

Packaging Details Standard Haiwell PLC new original packing, cartons packed
Delivery Time Shipped in 1 days after payment

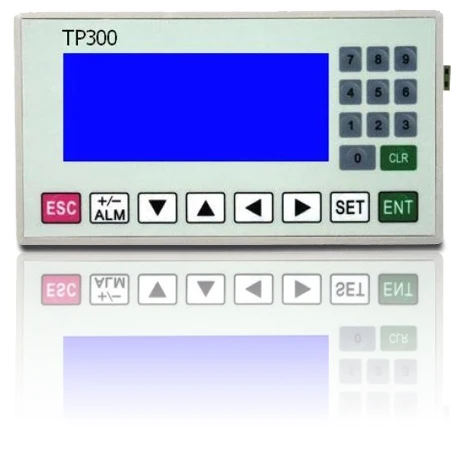

New design Haiwell TP300 programmable high definition LED text display for PLC





Haiwell PLC controller is the first programmable logic controller designed with 100% built-in simulator from China. Very easy to study and use. It is the best choice for small and medium PLC controller market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.



It is a versatile high-performance programmable logic controller, widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment etc.





Haiwell TP300 is a Human-Machine Interface that is used with many kinds of PLC (or the other intelligent controllers with communication ports). With TP300, both the values of the PLC inner registers and the relays status of PLC can be monitored or changed through texts or LEDs. So the operation of the machines or the devices is more easy and convenient.





Product Description
Model TP300
Shell color Gray
Display 4.3"STNBlue LCD
Resolution 192 × 64 Pixel
Color Monochrome
Brightness 60 cd/m²
Contrast Potentiometer adjustment
Backlight Long-life bright white LED
LCD life ≥50000 @25±2℃,65±10%RH
Touch screen Non-touch
CPU 8-bit MCU
Memory 64KB Flash ROM
Recipe memory NOn-touch
Clock YES (30PPM Accuracy)
Function keys 19, can be freely defined (Containing 10 number input buttons)
Communication port PC RS232 & PLC RS485 & PLC RS232
Print Port NO
Power supply 21~28 VDC
Current consumption MAX150mA@24VDC
EMC Test DC EFT:±3000V
Withstand Voltage Test 500 V AC 1minute
Insulation Impedance ≥10MΩ @ 500V DC
Vibration Resistance 10 ~ 25 Hz (X-axis, Y-axis and Z-axis 2G/ 30 minutes)
Protection class IP65(Front Panel)
Operating temperature 0 ~ 50 ℃
Humidity 20 ~ 90 % RH (Non-condensing)
Storage temperature -20℃~70℃
Shell material ABS+PC
Dimensions 172 × 95 × 30mm
Display Size 101 × 36 mm
Mounting area 165 × 86 mm
Cooling Natural cooling
Weight 0.3 Kg







Programming Software



TP300 V1.0.0 is the specific configuration software for the programmable text monitor TP300.It can run on the WINDOWS 98/2000/XP platforms. It is easy to study and convenient to use. The user can input English/Chinese characters directly.





Text Display Feature
  • The windows are made with the editor TP300 on PC. Text including Chinese characters can be input and the PLC address can be set. The windows are downloaded with serial port
  • The PLC communication protocols are downloaded to the TP300 with the data of the windows, so the engineer needn’t program of communication.
  • It can work with most popular PLC, including SIEMENS, Mitsubishi, OMRON, Schneider,FACON, LG, Delta, AB ,SAIA and etc. It supports some general protocols like Modbus RTU, Free communication and ECOSTEP protocol applied in KINCO servo motor driver.
  • Password protecting function.
  • Alarm List function. The current alarm information is displayed one by one.
  • Optional clock module is available. They can provide a real-time clock.
  • It has 19 keys, which can be defined as function keys,there is a keyboard for numeric input. The manipulation is simple. Some of the mechanic buttons on the controlling cabinet can be substituted with them.
  • Various communication modes can be selected. Any of RS232 and RS485  is OK.
  • STN LCD with background lights. 4 rows (24 English or 12 Chinese characters in every row) of characters can be displayed at the same time.
  • The front panel of the TP300 accords with IP65 standard. It is water-proof and oil-proof.
Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.



At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.



The products are of our own manufacture. We have advanced  production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.

Every year our company have different and high-quality exhibitions and training meetings which attract different customers to join us.





Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.



Shipment

1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
3,Shipping method is negotiable,customer can designate freight forwarders.
