10.1" Haiwell Cloud Ethernet HMI C10 Human machine interface

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $400.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Haiwell
Model Number:
C10
Display:
10.1"
Resolution:
1024x600 pixels
CPU:
Cortex A8 800MHZ
Colors:
16.7M
Flash:
4GB EMMC
RAM:
DDR3 512M
Ethernet:
Support
Dimensions WxHxD:
270x212x35mm
Panel Cutout WxH:
260x202mm
Protection Structure:
IP65
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month Haiwell HMI human machine interface
Packaging & Delivery
Packaging Details
Standard Haiwell HMI human machine interface new original packing, cartons packed
Port
Xiamen
Lead Time :
Shipped in 1 days after payment

10.1" Haiwell Cloud Ethernet HMI C10 Human machine interface



C10 HMI.jpg



Haiwell HMI (Human Machine Interface) has 7" and 10.1"  sizes as optional, it is designed with HMI/SCADA/Cloud 3in1. Using Haiwell Cloud SCADA Software for programming and management.



Product Description



Haiwell 10.1"HMI C10 - Human Machine Interface



* 10.1" TFT 1024x600. LED backlight, fashion, splendid, elegant
* Cortex A8 800MHZ CPU, 4GB FLASH + 512M DDR3
* Serial port/ U disk / SD card / Ethernet port/ Haiwell cloud
* Supports cloud / mobile terminal access control, strong operability
* A/B Key security mechanism, Multi-language automatic translation, Project overview interface
* Innovatie network mode, easy, convenient and pratical
* Integrate Haiwell cloud service, built-in Haiwell cloud engine
* Standard RJ45 port, 2 serial ports (232/422/485), 2 USB ports, SD card. WiFi is optional

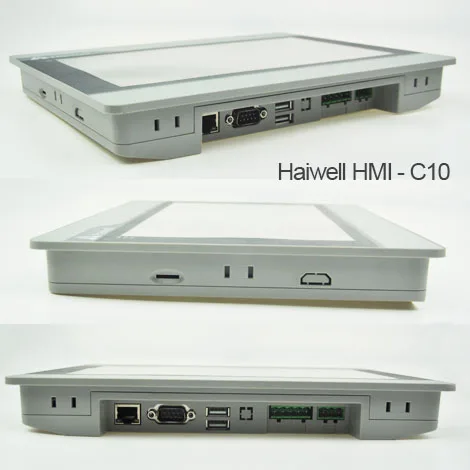

C10 M1.jpg





Haiwell HMI C10 Product Specification



SpecificationModelC10 HMI -human machine interface
Display  Display   10.1" TFT
  Resolution  1024x600 pixels
  Colors  16.7M
  Brightness(cd/m²)  350
  Contrast Ratio  500:1
  Touch Type  Resistive Type
Backlight  Backlight Type  LED
  Backlight Life Time  20,000 Hours
  Automatic Dormancy  Support and Configurable
Software   Haiwell Cloud SCADA
Processor  CPU  Cortex A8 800MHZ
Memory  Flash   4GB EMMC
  RAM  DDR3 512M
I/O Port  Micro SD Card Slot  Support
  Ethernet Port  10/100 Base-T
  WiFi (Optional)  802.11b/g/n
  COM Port  COM1: RS232/RS422/RS485
  COM2: RS232/RS485
  USB Host  USB2.0 x 2
  Print Port  COM Port/USB Print
Power  Input power  24±20%VDC
  Power Consumption  9W
  Power Isolation  Built-in
  Voltage Resistance  500V AC
  Isolation Resistance  Exceed 50MΩ @500VDC
  Vibration Endurance  10 ~ 25 Hz
  (X, Y, Z  direction 2G/30 minutes)
Environment  Cooling Type  Natural air Cooling
  Protection Structure  IP65
  Storage Temperature  -20 ~ 70℃
  Operating Temperature  -10℃ ~ 60℃
  Relative Humidity  10 ~ 90%RH (non-condensing)
Specification  Enclosure  Engineering Plastic ABS (Flame-      retardant level)
  Dimensions WxHxD  270x212x35mm
  Panel Cutout WxH  260x202mm
  Weight  About 1.2kg
Certification  CE Certification  Complied

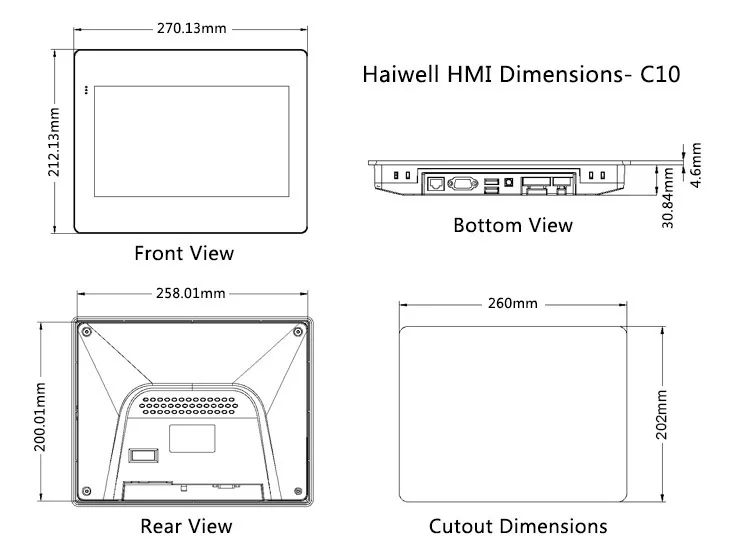

Haiwell HMI C10 Products Dimension
C10 Dimensions.jpg



Haiwell Cloud Networkd Diagram








Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.



At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.



The products are of our own manufacture. We have advanced  production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.


Every year our company have different and high-quality exhibitions and training meetings which attract different customers to join us.


haiwell meeting.jpg





Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.



Shipment

1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
3,Shipping method is negotiable,customer can designate freight forwarders.
