USB2.0, USB3.0, RJ-45, COM port, VGA, HDMI, Audio port
Color:
Black
Switch power:
24V DC
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Port
Xiamen
New Haiwell 15 inch P15 industrial computer Linux system supported industrial tablet pc
Product Description
* Intel Baytrail J1900 4-Core CPU, DDR3+SSD
* Shell is made in steel plate, matte smooth panel, more beautiful and firm
* 178° full view LED screen, high resolution, high color saturation, exquisite screen
* Support USB 3.0(maximum 2) and USB 2.0(maximum 3),Integrated 6 COM ports, for COM3: RS232 / RS485 / RS422 is optional
* Support VGA and HDMI output, WIFI is optional,Support dual Gigabit Ethernet (up to 2 LAN ports), 1 LIN-OUT port
* Linux system. Built-in Haiwell Cloud SCADA software
* Support for embedded, VESA cantilever, wall hanging, desktop bracket and other installation methods, there will be given 1 desktop bracket and 1 set of (4 pcs) embedded snap for free

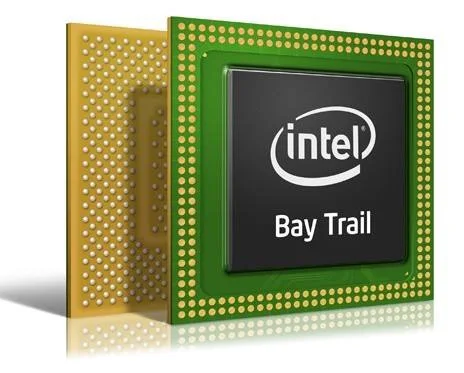

CPU
l Intel Baytrail J1900 4-Core CPU, response faster
l No noise and no fan, lower power assumption
Interface And Ports
l Support USB 3.0(maximum 2) and USB 2.0(maximum 3)
l Integrated 6 COM ports, for COM3: RS232 / RS485 / RS422 is optional
l Support VGA and HDMI output, WIFI is optional
l Support dual Gigabit Ethernet (up to 2 LAN ports), 1 LIN-OUT port
l DC 12V power supply
l Microphone and speaker
OS And Software
l Windows XP/Win7/Win8/Win10
l SCADA software based on Windows system
l Support Linux System (it is supported by customers themselves)
l Built-in Haiwell Cloud SCADA software
Installation
l VESA cantilever
l Embedded installation
l Wall hanging

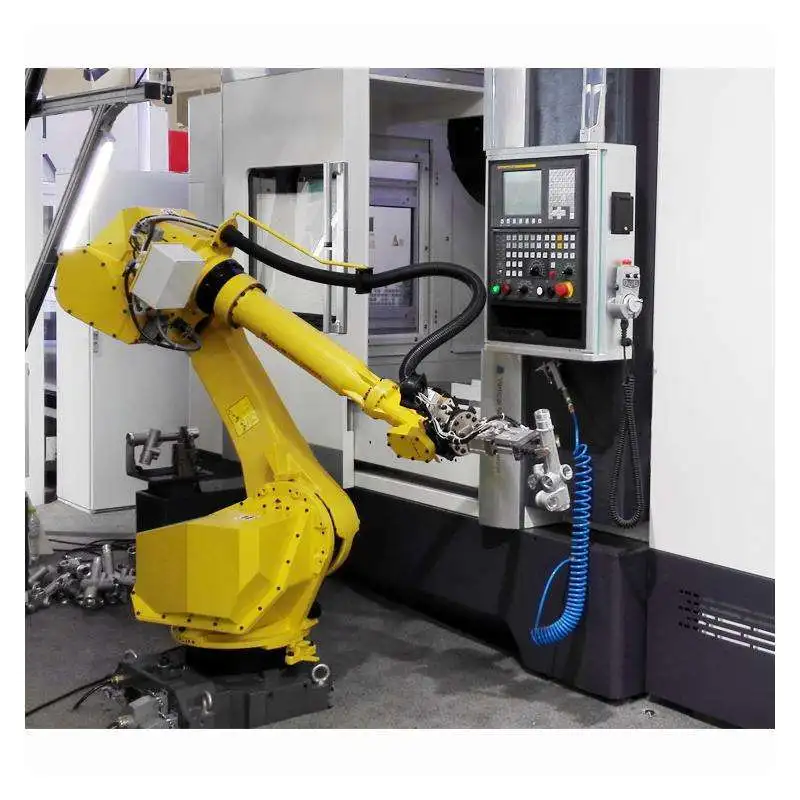

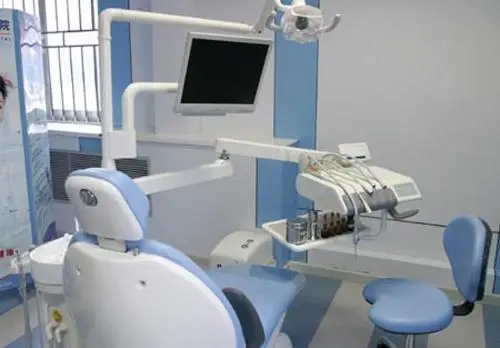

Application in industrial automation,medical equipment and so on

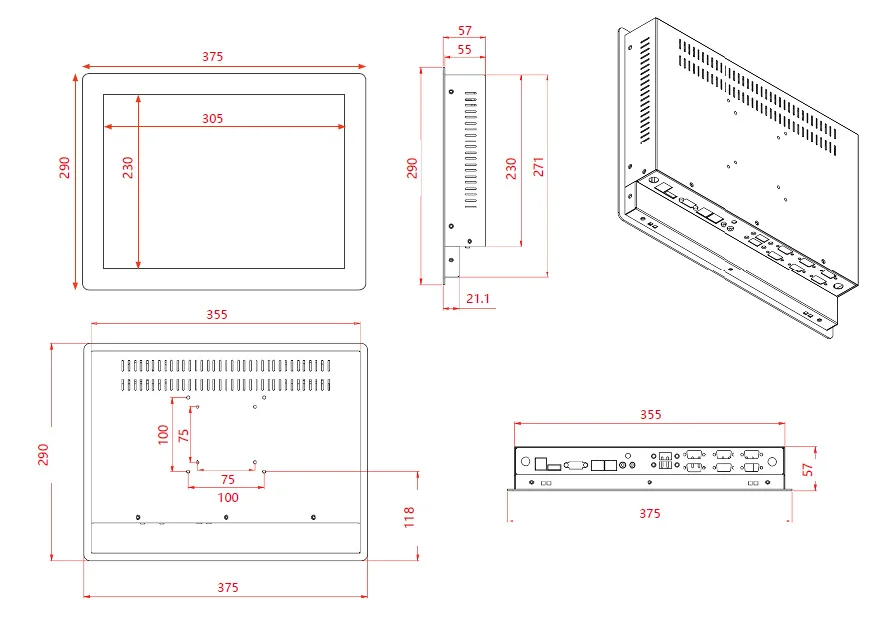

Haiwell Industrial Panel PC P15 Dimension
Haiwell Industrial Panel PC P15 Specification
Specification
Model
P15
System paramaters
CPU
Intel Celeron J1900
Memory capacity
2G DDR3 (4GB/8GB OPTIONAL)
Hard disk capacity
32G SSD (64G/128G/ HDD OPTIONAL)
Built-in speaker
2x 3W(4Ω)
Host heat dissipation
Fanless
Power consumption
<25W
Power characteristics
12V/5A
Operating system
Support Windows
Display parameters
Displayer
15’’TFT
Resolution
1024×768
Color
16.7M
Backlight
LED
Display scale
4:03
Brightness
300cd/square meter
Contrast ratio
2500:01:00
Backlight life
70,000 hours
Viewing angle
88° (L), 88° (R), 88° (U), 88°(D)
Touch parameters
Touch screen
5 wire analog resistive
Light transmittance
≥76%
Touch life
≥30 million times
Controller
USB interface
Interface parameters
Network interface
1xRJ-45(1000Mb)
USB interface
USB 3.0x1
USB 2.0x5
Serial port
6xCOM (Default RS232, for COM3, it supports optional three protocols of RS232 / 422/485)
Expansion interface
1xVGA, 1xHDMI
Antenna interface
WIFI is optional
Audio Interface
1x Audio
Power interface
1x aviation power port
Enviromental parameters
Oerating environment
0 ~ 50 °C
Storage environment
-20 ~ 60°C
Relative humidity
10~ 90%RH(non-condensing)
Protection grade
IP30
Certification
FCC Certification, CE Certification
Structural parameters
Product features
Support power-on function, dust proof, high-temperature resistance, anti-interference, high stability
Box materials
made in steel plate, matte smooth panel, more beautiful and firm
Color
Black
Installation method
Support for embedded, VESA cantilever, wall hanging, desktop bracket, etc
Product size (W x H x D)
375 x 290 x 57 mm
Display size (W x H )
305 x 230mm
Screen edge spacing (W x H )
29.5 * 34.5mm
Hole size (W x H )
355 x 271mm
Weight
Net weight: 5kg
Gross weight: 6.3kg
Accessories
Switch power
24V DC
Embedded buckle
Yes
Desktop bracke
Yes
Haiwell Cloud Networking Diagram
Factory
Xiamen Haiwell Technology Co,.Ltdwas founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.
At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.
The products are of our own manufacture. We have advanced production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.
Every year our company have different and high-quality exhibitions and training meetings which attract different customers to join us.
Warranty & Shipment
Warranty
1,All Haiwell PLC products support 24 months warranty. 2,Shipment within 5 workdays after payment received.
Shipment
1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door. 2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available. 3,Shipping method is negotiable,customer can designate freight forwarders.
