Haiwell 17 inch P17 fanless industrial panel pc all in one touch screen computer

FOB Reference Price:Get Latest Price
  • 1 - 4 Pieces
    US $1417.00
  • >=5 Pieces
    US $1133.60
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Haiwell
Model Number:
P17
CPU:
Intel Celeron J1900
Display:
17 inch TFT 1280*1024 pixels
Memory capacity:
2G DDR3 (4GB/8GB OPTIONAL)
Hard disk capacity:
32G SSD (64G/128G/ HDD OPTIONAL
Operating system:
Linux
Dimension:
415*337*57mm
Weight:
GW: 8.2kg
COM Port:
USB2.0, USB3.0, RJ-45, COM port, VGA, HDMI, Audio port
Certification:
FCC Certification, CE Certification
Switch power:
24V DC
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Port
Xiamen

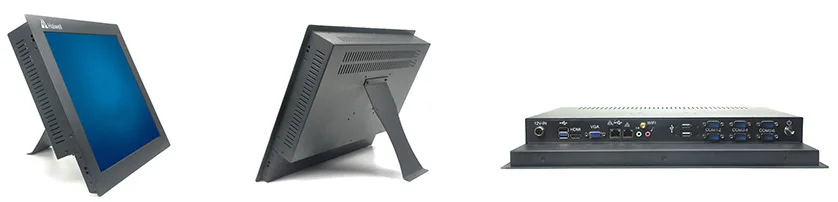

Haiwell 17 inch P17 fanless industrial panel pc all in one touch screen computer



Product Description

*  Intel Baytrail J1900 4-Core CPU, DDR3+SSD

*  Shell is made in steel plate, matte smooth panel, more beautiful and firm

*  178° full view LED screen, high resolution, high color saturation, exquisite screen

*  Support USB 3.0(maximum 2) and USB 2.0(maximum 3),Integrated 6 COM ports, for COM3: RS232 / RS485 / RS422 is optional

*  Support VGA and HDMI output, WIFI is optional,Support dual Gigabit Ethernet (up to 2 LAN ports), 1 LIN-OUT port

*  Linux system.  Built-in Haiwell Cloud SCADA software

*  Support for embedded, VESA cantilever, wall hanging, desktop bracket and other installation methods, there will be given 1 desktop bracket and 1 set of (4 pcs) embedded snap for free




CPU

Intel Baytrail J1900 4-Core CPU, response faster

No noise and no fan, lower power assumption

Interface And Ports

Support USB 3.0(maximum 2) and USB 2.0(maximum 3)

Integrated 6 COM ports, for COM3: RS232 / RS485 / RS422 is optional

Support VGA and HDMI output, WIFI is optional

Support dual Gigabit Ethernet (up to 2 LAN ports), 1 LIN-OUT port

DC 12V power supply

Microphone and speaker





OS And Software

Windows XP/Win7/Win8/Win10

SCADA software based on Windows system

Support Linux System (it is supported by customers themselves)

Built-in Haiwell Cloud SCADA software





Installation

VESA cantilever

Embedded installation

Wall hanging



 Application in industrial automation,medical equipment and so on.

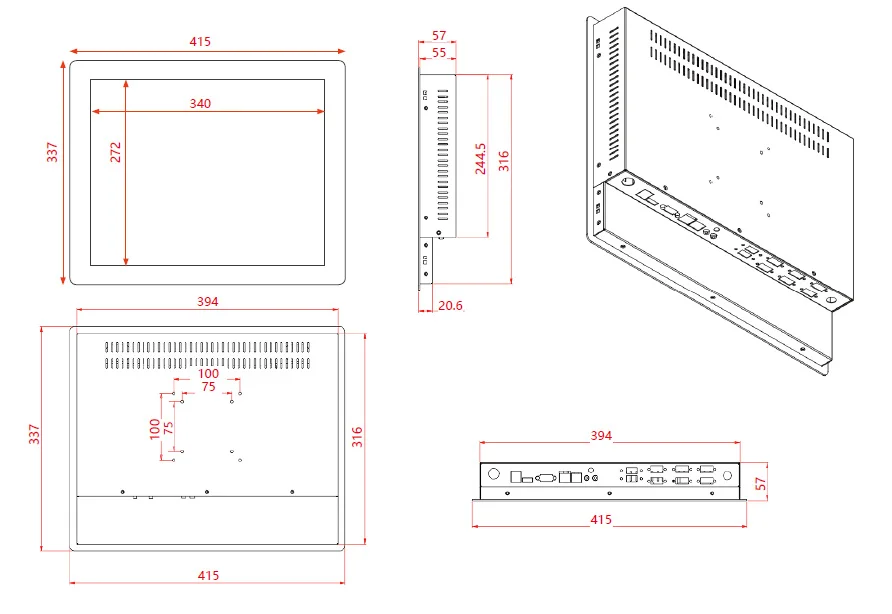

Haiwell Industrial Panel PC P17 Dimension

Haiwell Industrial Panel PC P17 Specification

SpecificationModelP17
System
paramaters
CPUIntel Celeron J1900
Memory capacity2G DDR3 (4GB/8GB OPTIONAL)
Hard disk capacity32G SSD (64G/128G/ HDD OPTIONAL)
Built-in speaker2x 3W(4Ω)
Host heat dissipationFanless
Power consumption<35W
Power characteristics12V/5A
Operating systemSupport Windows

Display
parameters
Displayer17’TFT
Resolution1280×1024
Color16.7M
BacklightLED
Display scale4:03
Brightness250cd/square meter
Contrast ratio1000:01:00
Backlight life50,000 hours
Viewing angle85° (L), 85° (R), 80 (U), 80°(D)
Touch
parameters
Touch screen5 wire analog resistive
Light transmittance≥76%
Touch life≥30 million times
ControllerUSB interface
Interface
parameters
Network interface2xRJ-45(1000Mb)
USB interfaceUSB 3.0x1
USB 2.0x3
Serial port6xCOM (Default RS232, for COM3, it supports optional three
protocols of RS232 / 422/485)
Expansion interface1xVGA(Support synchronous dual-display and synchronous different-display function), 1xHDMI
Antenna interfaceWIFI is optional
Audio Interface1x Audio
Power interface1x aviation power port
Enviromental
parameters
Oerating environment 0 ~ 50 °C
Storage environment-20 ~ 60°C
Relative humidity10~ 90%RH(non-condensing)
Protection gradeIP30
CertificationFCC Certification, CE Certification
Structural
parameters
Product featuresSupport power-on function, dust proof, high-temperature
 resistance, anti-interference, high stability
Box materialsMade in steel plate, matte smooth panel, more beautiful and firm
ColorBlack
Installation methodSupport for embedded, VESA cantilever, wall hanging,
desktop bracket, etc
Product size (W x H x D)415 x 337 x 57 mm
Display size (W x H )340 x 272mm
Screen edge spacing (W x H )32.5 * 37.5mm
Hole size (W x H )394 x 316mm
WeightNet weight: 6.7kg
Gross weight: 8.2kg
AccessoriesSwitch power24V DC
Embedded buckleYes
Desktop brackeYes
