Haiwell H01TCP-4 powerful protocol gateway for industry automation

FOB Reference Price:Get Latest Price
US $480-900 / Pieces | 1 Piece/Pieces protocol gateway (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Haiwell
Model Number:
H01TCP-4
Memory::
64M DDR2
Storage:
256M SLC Flash
Voltage:
DC24V
Operating system:
Windows CE
Ethernet:
2 (10M/100M) Ethernet ports
COM port:
Isolated RS485
Working temperature:
-30~75℃
Cooling mode:
Nature cooling
Dimension:
140*116*30mm
Weight:
500g
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month protocol gateway
Packaging & Delivery
Packaging Details
Standard Haiwell protocol gateway new original packing, cartons packed
Port
Xiamen
Lead Time :
Shipped in 1 days after payment

Haiwell H01TCP-4 powerful protocol gateway for industry automation



 gateway.pngHaiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.



It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.

Very easy to study and use!  It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.



The H01TCP-4 is a powerful gateway of hardware protocol,it can transform various protocols of the slave device into standard Modbus RTU protocol or Modbus TCP protocol.
Convenient for multiple equipment protocols networking and monitoring. Mainly used in the site which uses Non-Ethernet equipments with Ethernet PC.





Product Overviews

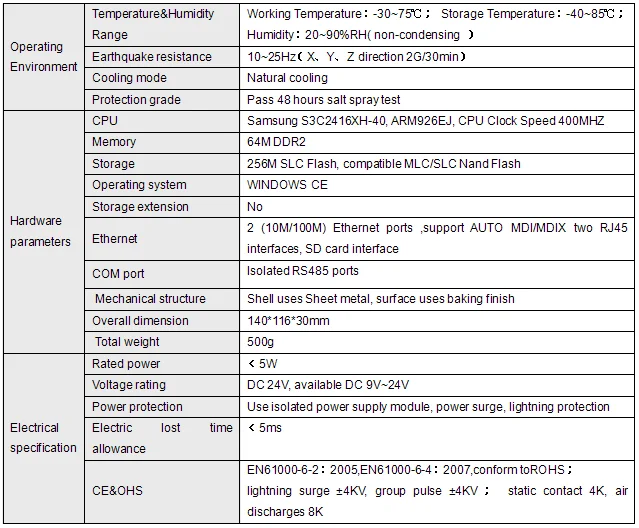

H01TCP-4 protocol gateway specification table



Protocal gateway





Programming Software

  HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users.  All neccessary instructions are highly intergrated,  Very easy to study and use.



It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.



Runing with Windows 98, Windows 2000, Windows XP and  newer versions.

Totally free PLC software with all features.




Advantages



H01TCP-4 protocol gateway diagram

Gateway diagram





H01TCP-4 protocol gateway advantages and features

  • The H01TCP-4 protocol gateway supports transforming different protocols into standard Modbus TCP protocol or Modbus RTU protocol simultaneously
  • Support multiple upper PC clients access the gateway to monitor the equipments simultaneously
  • Using Use address mapping mode in order to realize the rapid response to the TCP client request
  • Built-in WEB server, the user can use the browser to view real-time state of communication and the change of the data, convenient for debugging on site
  • Support analog linear transformation, fetch bit, high and low byte exchange, etc
  • 2 Ethernet ports, 4 isolated RS485 communication port
  • Support the following conversion agreement for the time being



PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.

Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.

Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.

Factory

Xiamen Haiwell Technology Co,.Ltd was founded in 2005 and has been the global leader in PLC automation control industry. It’s a high-tech enterprise,integrating indendent research and development, production and merchandising. As one of China’s first industrial control market participant, Haiwell has long been committed to the research and development of industrial automation core control system.



At present, the company’s main products include PLC, HMI, Cloud SCADA, intelligent gateway, wireless communication module ect. They are widely used in plastic, packaging, textile, food, medical, pharmaceutical, environmental protection, municipal,printing, construction material, elevator, central air conditioning, precise CNC machines and other industrial control field.



The products are of our own manufacture. We have advanced  production workshop and professional team. Beside, Haiwell PLC is authenticated by many certifying agency. Now we have different certifacation such as CE, ISO and so on.


Every year our company have different and high-quality exhibitions and training meetings which attract different customers to join us.


haiwell meeting.jpg





Warranty & Shipment

Warranty

1,All Haiwell PLC products support 24 months warranty.
2,Shipment within 5 workdays after payment received.



Shipment

1,Fedex/DHL/UPS/TNT/EMS for sample and mass production,door to door.
2,By air and by sea for mass production of FCL and LCL,both sea port and airport are available.
3,Shipping method is negotiable,customer can designate freight forwarders.
